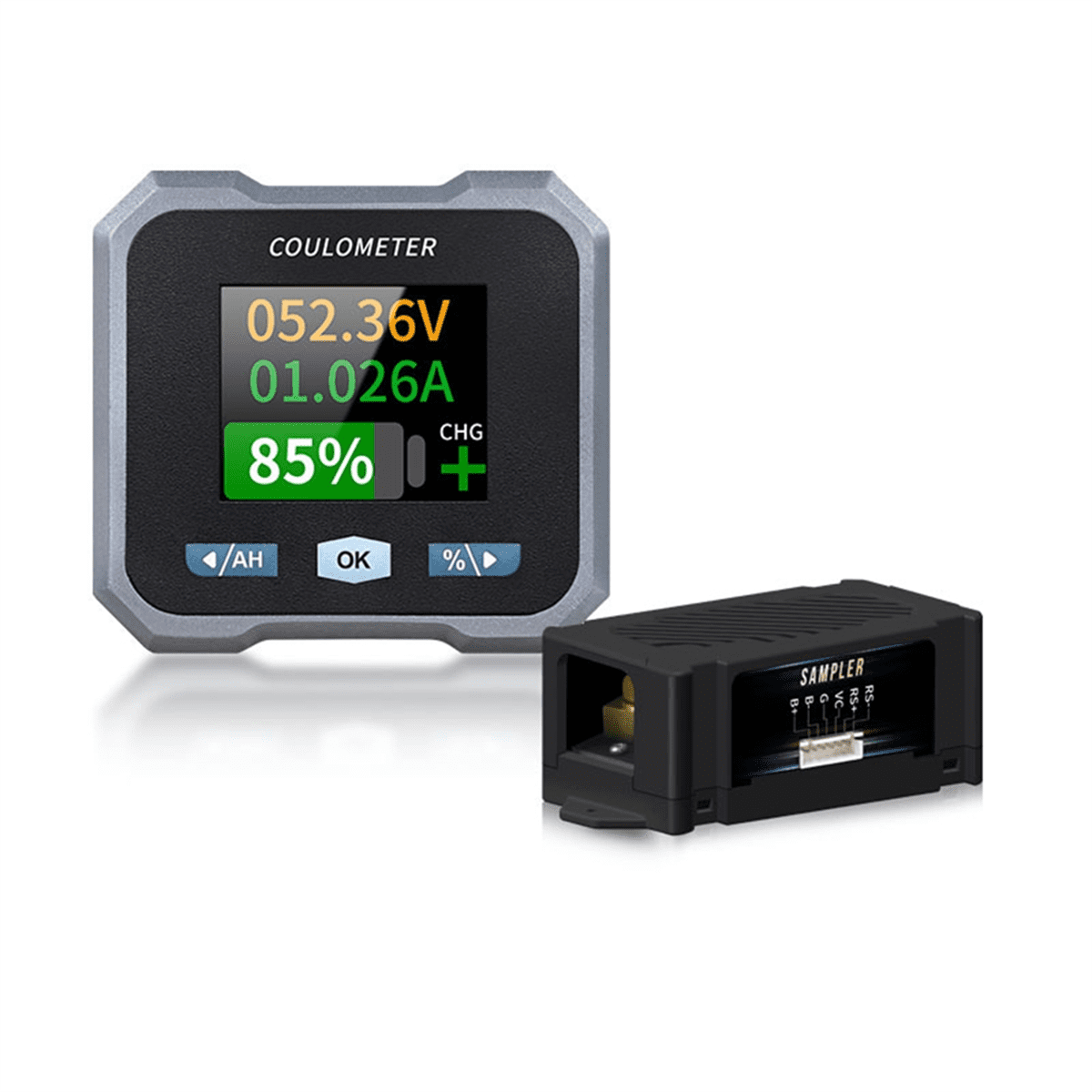

BL110F Coulometer Battery Meter DC10-100V 0-100A Waterproof Battery Meter and Voltmeter for Electric Quadricycle,A

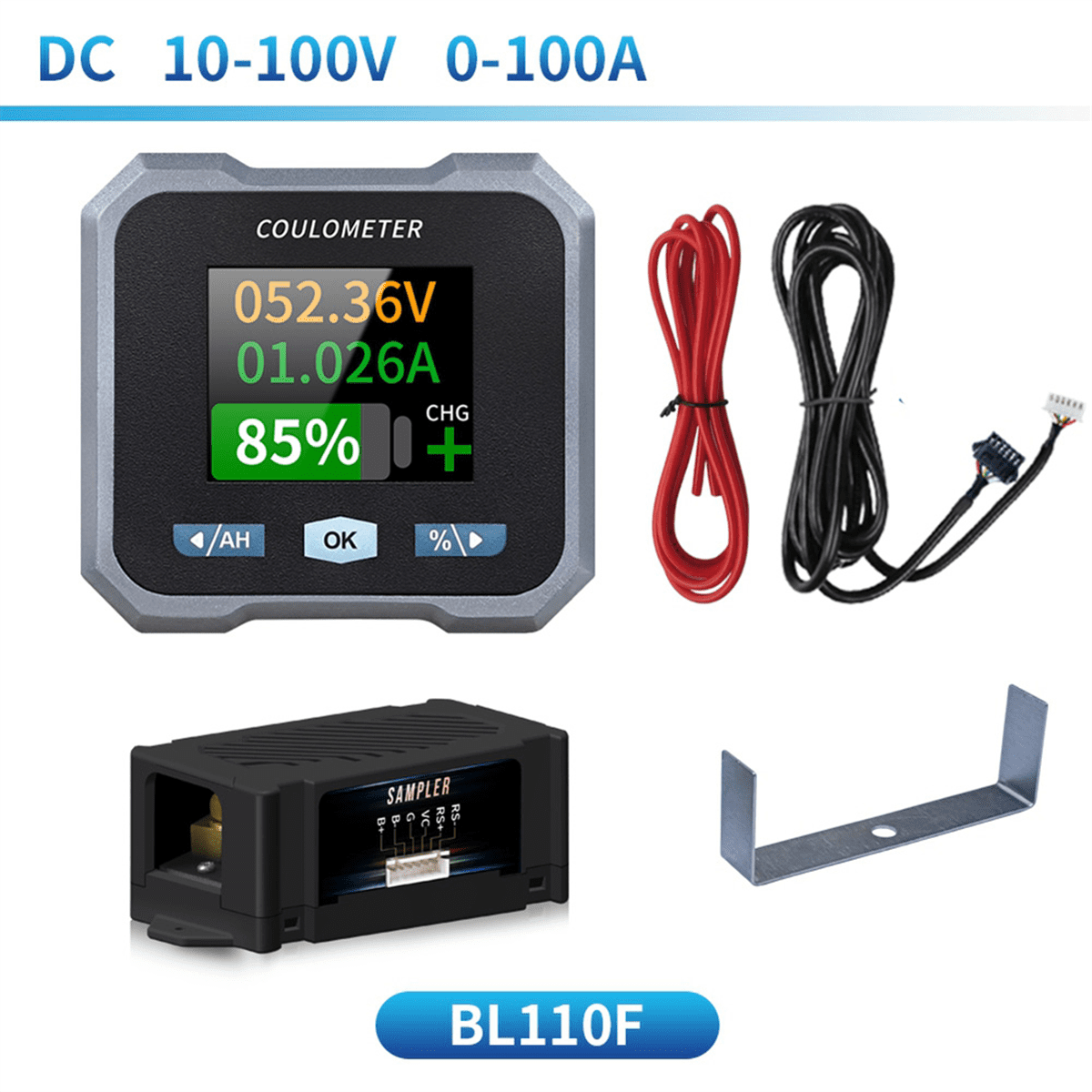

Description:<br>1.Model: BL110F<br>2. Sampling Method: Shunt<br>3.Voltage Measurement Range: 10-100V<br>4. Voltage Resolution Power Consumption: 0.01V<br>5. Current Measurement Range: 0~100A<br>6. Current Resolution Range: 0.01A<br>7. Capacity Display Range: 0%~100%<br>8. Power Measurement Range: 0~10KW<br>9. Functional Resolution: 0.01W<br>10.Ampere Hour Measurement Range: 0~9999.9AH<br>11. Capacity Resolution: 0.1AH<br>12. Bluetooth Communication Distance: Maximum 10 Meters Without Obstacles<br>13.Voltage Accuracy: ±1%<br>14. Current Accuracy: ±1%+0.1A<br>15.Monitor Power Consumption: About 0.75W<br>16. Screen Off Time: When Charging, The Screen Will Turn Off After 20 Seconds; When Discharging, I 15mA, The Screen Will Turn On; I less than 15ma And Time 20s, The Screen Will Turn Off<br>Note:<br>Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use<br>Package: A: with Inlaid Mounting Piece<br>Colour:As Shown<br>Material:ABS+Metal<br><br>Package Contents:<br>1x Sampler<br>1x Monitor<br>1x 3 Meter Communication Line<br>1x 1 Meter Red Positive Wire<br>1x English Instruction Manual<br>1x Inlaid Mounting Piece<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

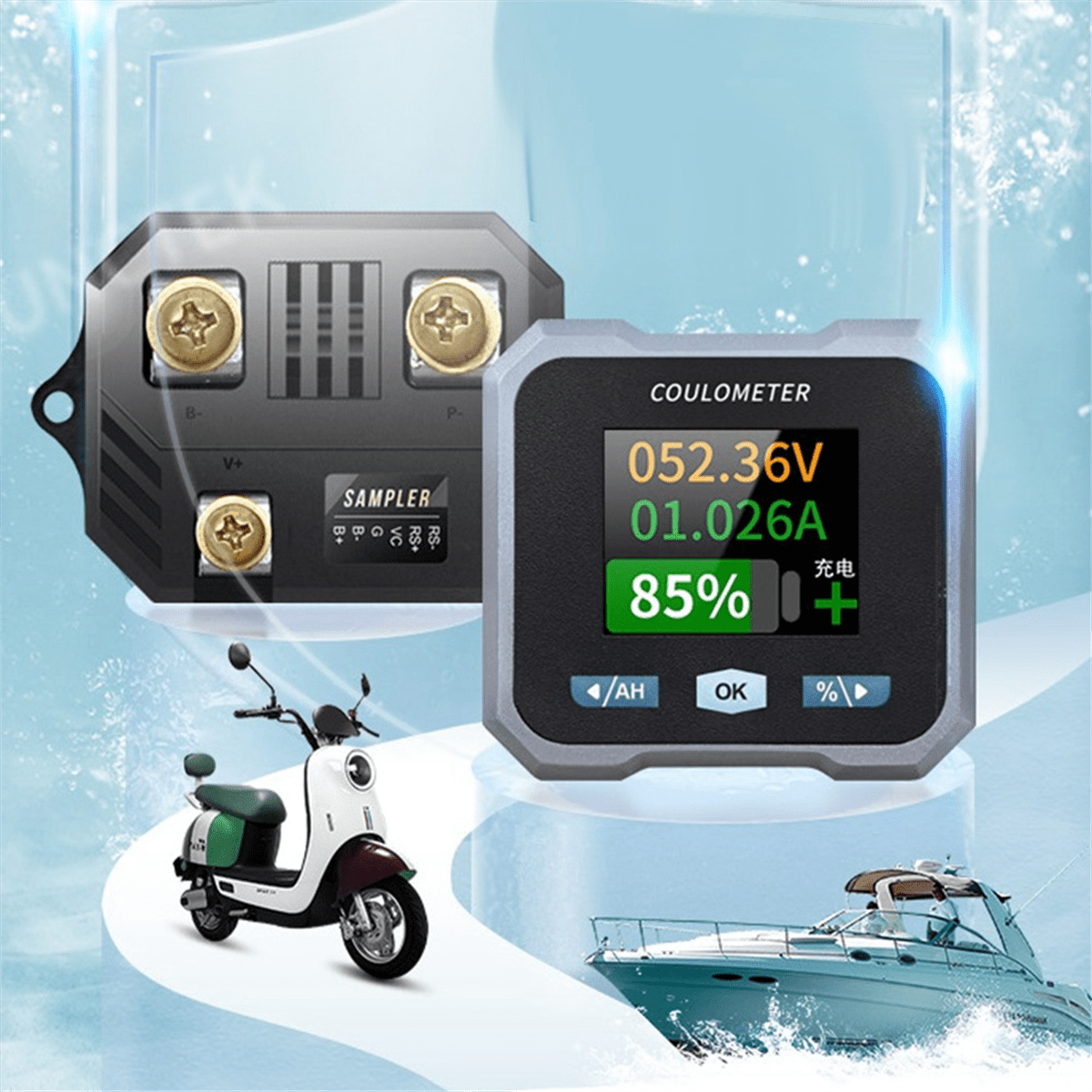

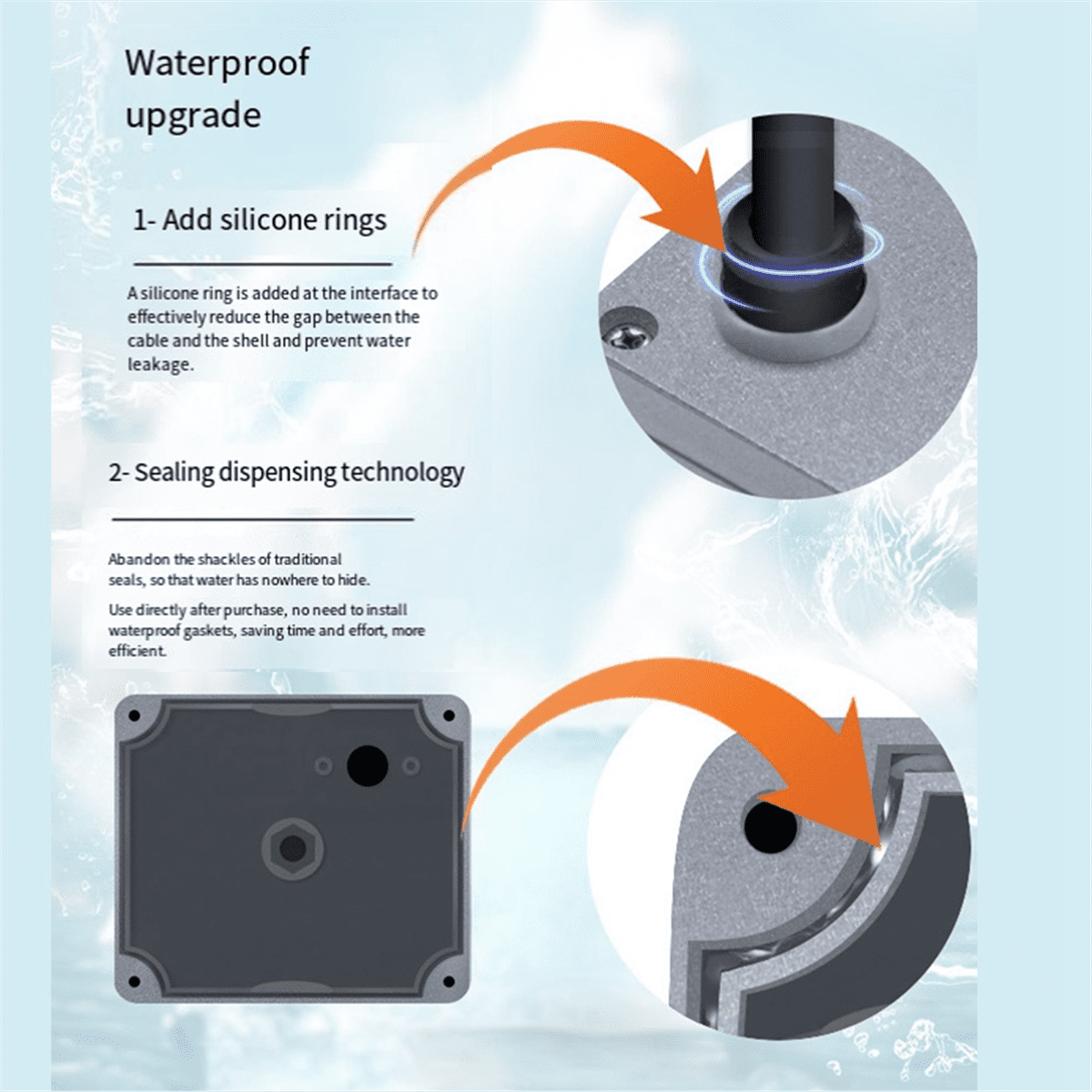

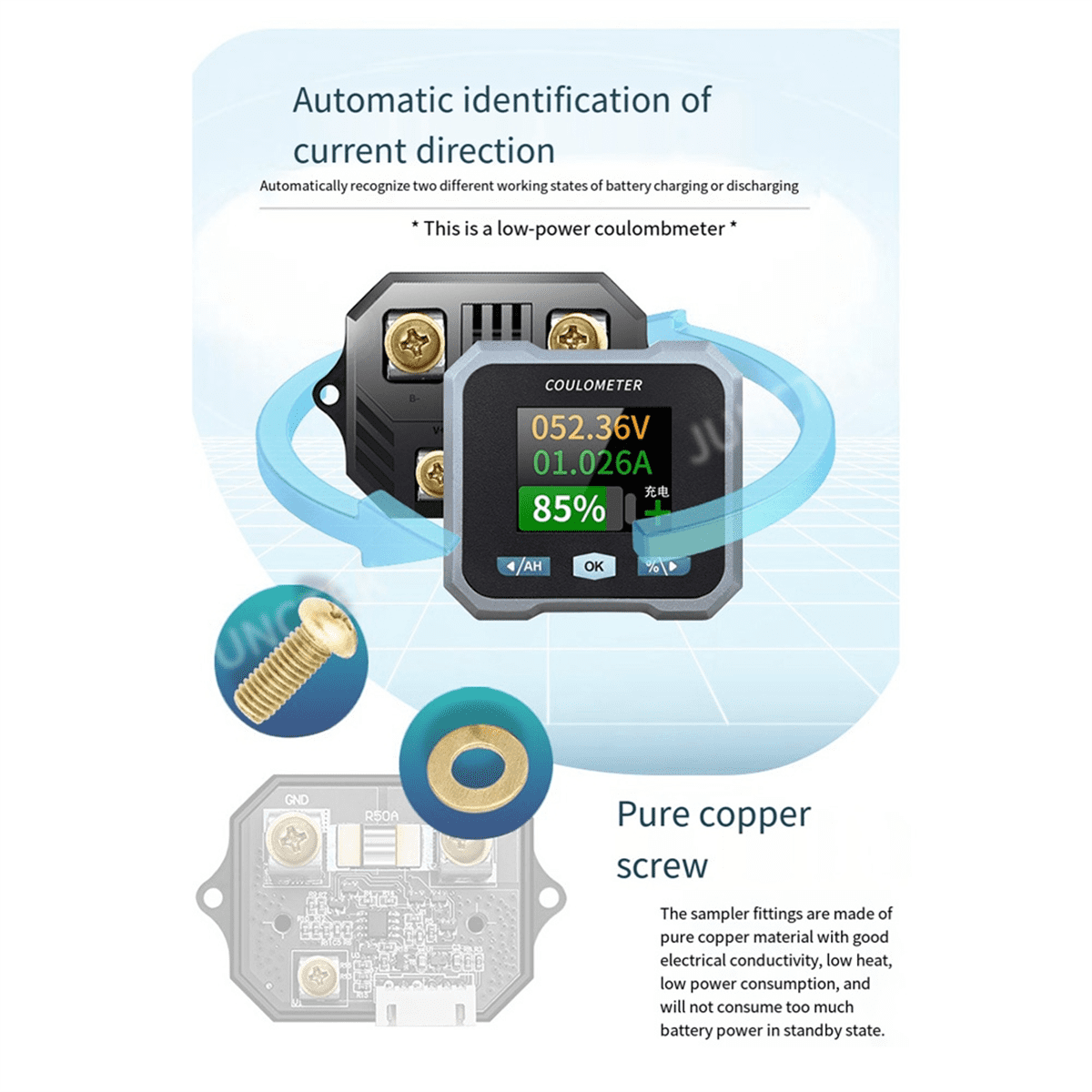

• 1. Waterproof And Dustproof; Bidirectional Current Detection

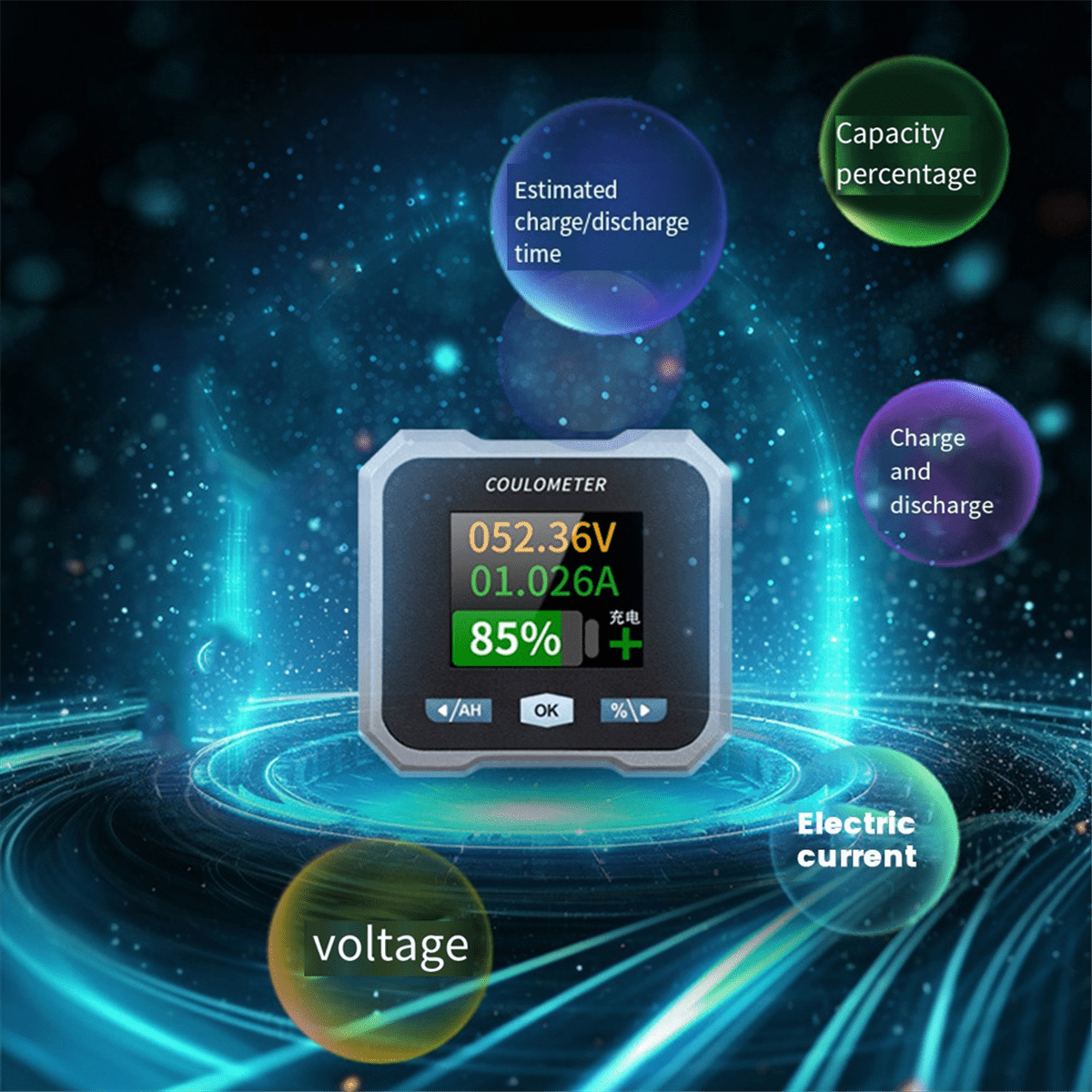

• 2. Real-Time Capacity Detection; Screen Highlight Function
• 3. High-Definition Color Screen; All-Copper Screws And Ultra-Low Power Consumption
• 4. Mobile Phone Bluetooth Control; Automatic Carousel
• 5. 2 Control Methods, Monitor Control Or App View Control
