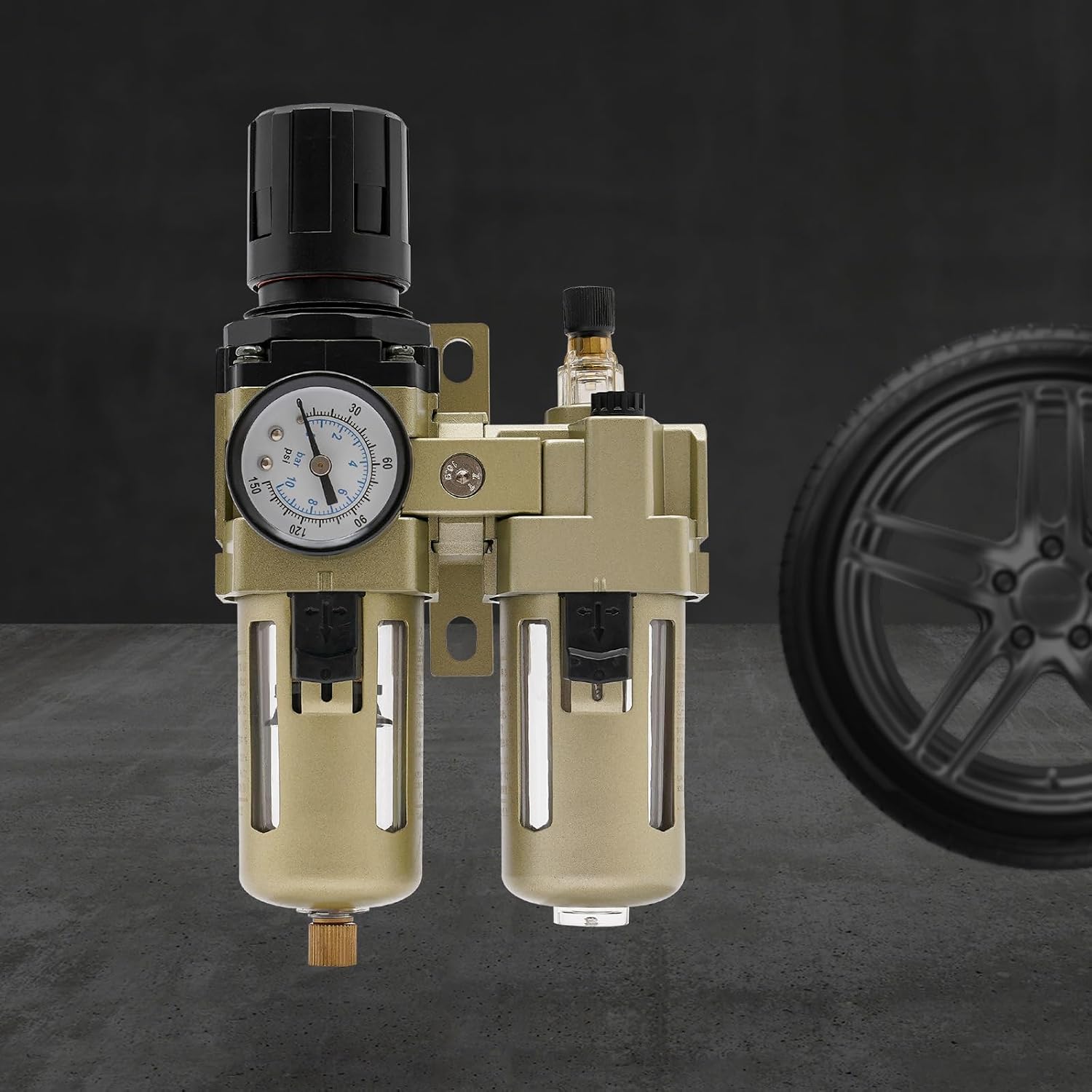

CNCEST Tire Changer Oil Water Separator,Tire Changer Machine Parts Air Pressor Oil Water Separator Regulator Trap Filter

Specifications Material: Cast Aluminum, Red Copper, Plastic Color: Gold Process: Oxidation Treatment, Sandblasting, Painting Assembly Required: No Number of Items: 1 Model: AC3010-03 Air Inlet/Outlet: G3/8 Pressure Regulating Range: 0-1MPa/0-145psi Max. Pressure: 1.5Mpa/217.56psi Filter Precision: 20μm/0.0008in Temperature: -5~60°C/23~140°F Pressure Gauge Thread: PT1/8 Suggest Oil: ISOVG32 Drainage: Pressure Difference Type: Lower Air Outlet Filter Regulators Length: 20.4cm/8.03in Lubricator Length: 15.3cm/6.02in Overall Product Size(W*H): 11.7*6.3cm/4.6*2.48in Gross Weight: 0.88kg/1.94 1bs Package Size: 21.7*7.5*12.5cm/8.54*2.95*4.92in How to Adjust the Pressure 1. Pull out the pressure regulating valve. 2. Rotate and adjust different pressures as needed. 3. Press down on the pressure regulating valve to lock the pressure. How to Change the Filter Element 1. Pull down the latch and rotate counterclockwise to remove the protective cover and filter cup. 2. Rotate counterclockwise to remove the fixing nut of the filter element. 3. Replace the matching filter element and tighten the fixing nut. 4. Install the inner cup cover in sequence to complete the replacement of the filter element. Package Included 1* Tire Changer Oil Water Separator Notes 1.Please check the size before buying 2.Please ensure the flow direction(air in from the left side and get out from the right side) is correct before installation. 3.The w-a-s-t-e water in the filter cup needs to be discharged regularly, and the filter element needs to be thoroughly cleaned to ensure that it is not blocked by large particle impurities. If the filter element is found to be damaged, please replace it on time. (The above operations are determined based on actual usage, and the wastewater in the cup cannot

• High-performance: The thickened diaphragm and good sealing allow it to support a maximum pressure of 217.56psi, improving the efficiency and performance of the tire changer.
• Drain Hole: The water in the filter cup will be drained automatically when without air pressure; when there is air pressure, please manually push the drainage needle under the filter cup upward and the water will be drained.
• Pressure Gauge: The pressure gauge with dual scales and clear values provides precise and stable measurements and allows you to observe the pressure values in real time.
• Easy to Install: A mounting bracket with reserved screw holes allows you to complete the installation in a short time.
• Application It is suitable for most machines that require compressed air such as tire changers, air tools including spray g-u-n s, nailers, airbrushes, tire compressors, inflators, pneumatic equipment, air compressors, pneumatic tools, and gas connection devices.
