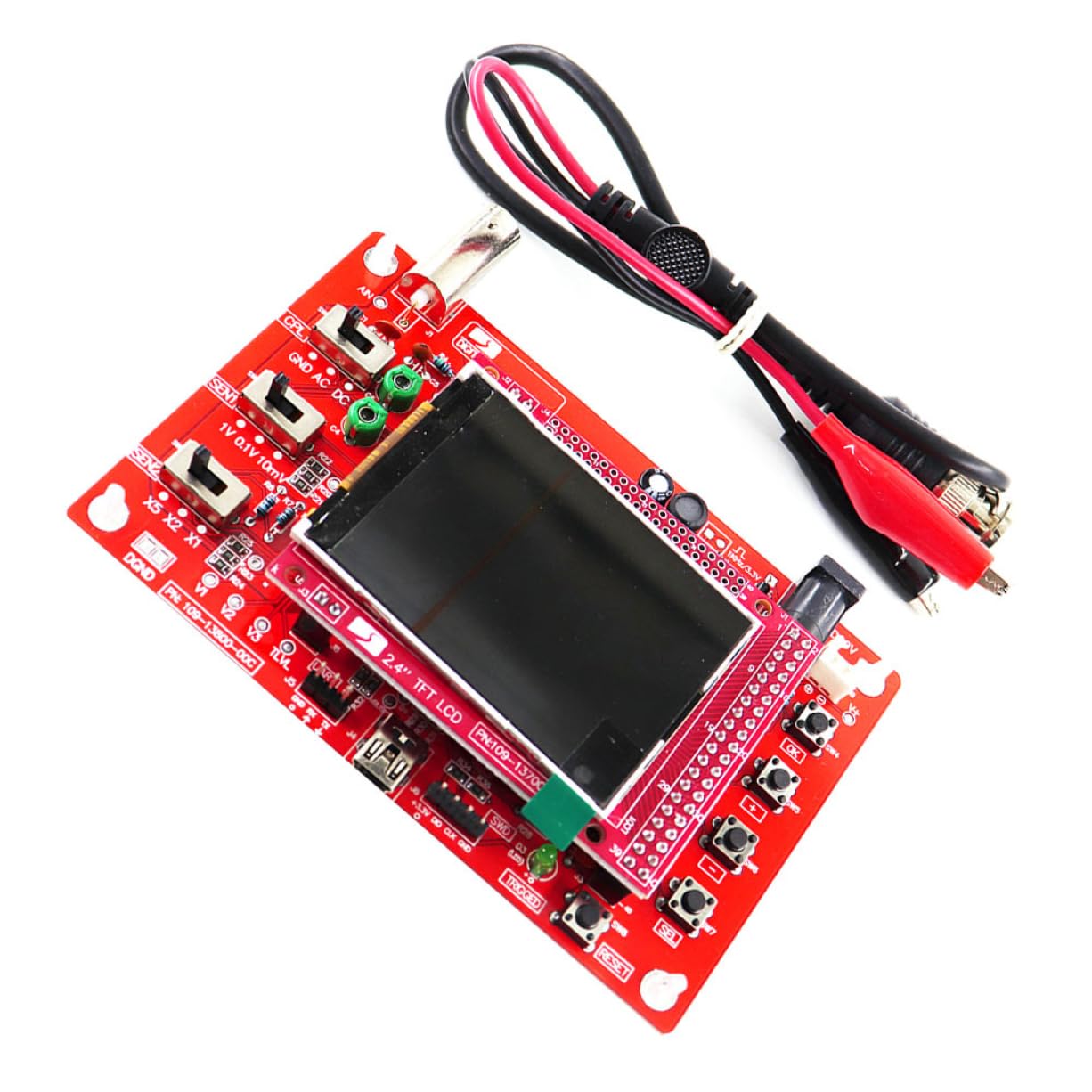

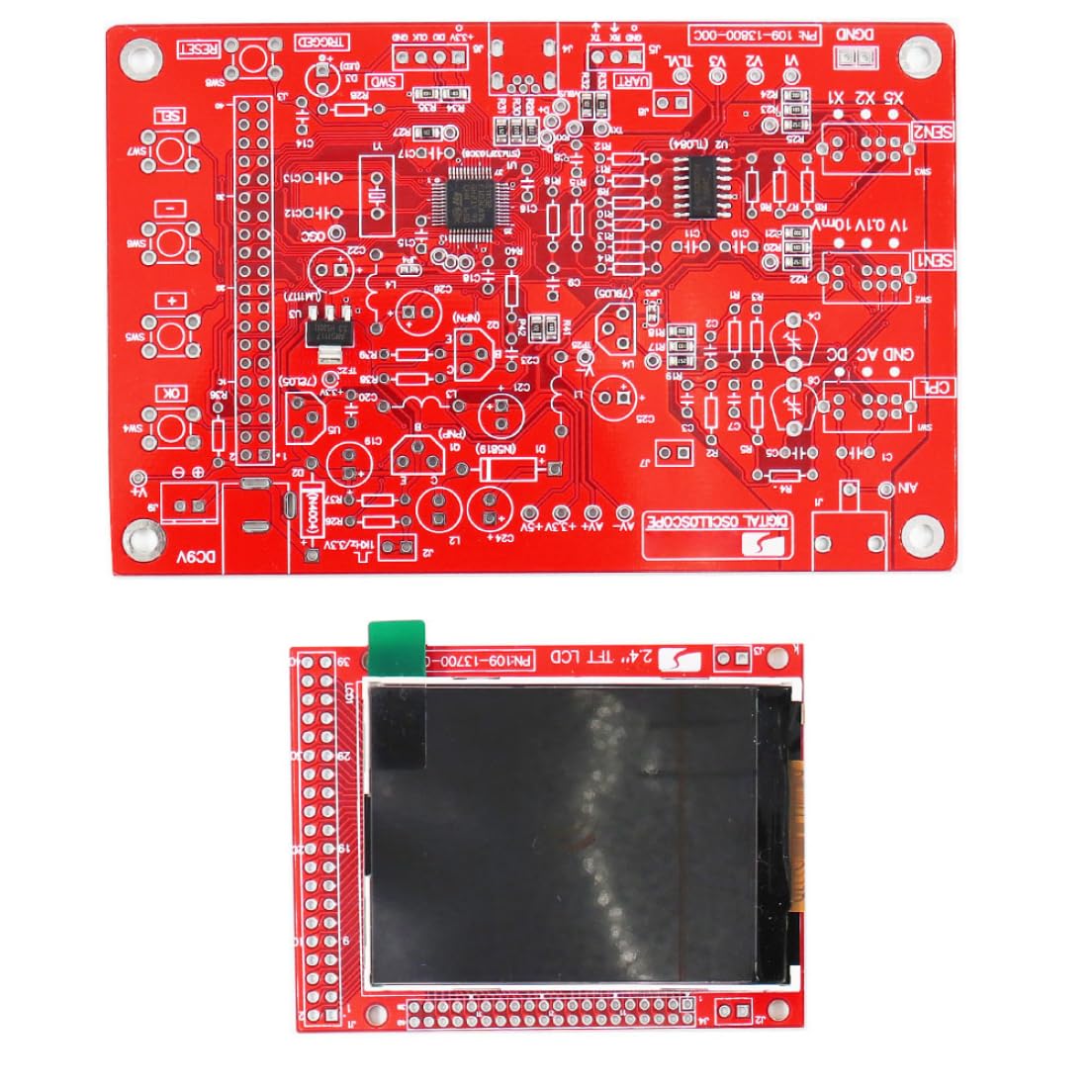

DIY Oscilloscope Kit Digital Oscilloscope Kit 2.4" TFT DIY Oscilloscope Digital Kit Oscilloscope Handheld Pocket Sized
4.6 (99 items)
Limited Time Sale$12.47 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218089442 | Release Date | 2026/05/03 | List Price | $8.32 | Model Number | 218089442 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description Square wave test source with 1KHz /3.3V. With waveform parameter digital display, the parameters can be displayed: frequency, cycle, pulse width, duty cycle, maximum, minimum, average, peak, rms. Digital Oscilloscope Kit save/bring out the waveform, turn off the waveform does not disappear. Feature Digital oscilloscope kit -Color: Red, Black, Transparent. -Material:Acrylic, Metal. -Size:128x88x27mm/5x3.46x1.06inch. -Highest real-time sampling rate: 1Msps. -Accuracy: 12Bit. -Depth of sample buffer: 1024 bytes. -Analog bandwidth: 0-200KHz. -Vertical sensitivity: 10mV/Div – 5V/Div (progressive by 1-2-5). -The vertical displacement is adjustable with indication. -Input impedance: 1M ohm. -Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe). -The coupling modes: DC/AC/GND. -Horizontal time base range: 10μs/Div – 50s/Div(step by 1-2-5). Package Including 1 * Welded Oscilloscope
- Oscilloscope can be triggered by rising or falling edges
- The trigger level is adjustable and with indication
- With automatic, conventional and single trigger mode, Digital Oscilloscope Kit is easy to capture the instantaneous waveform
- Digital Oscilloscope Kit can freeze waveform display (HOLD function) at any time
- Waveforms before observable triggering (Negative delay)
| Item Weight | 4.7 ounces |
|---|---|
| Manufacturer | Tuimiyisou |
| Product Dimensions | 5.12 x 3.54 x 1.18 inches |
