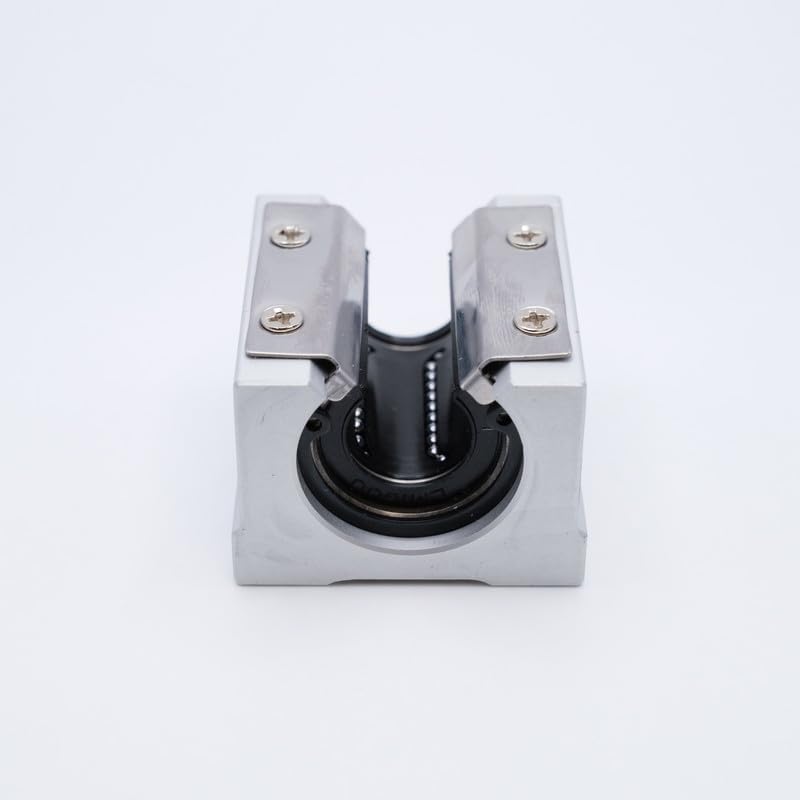

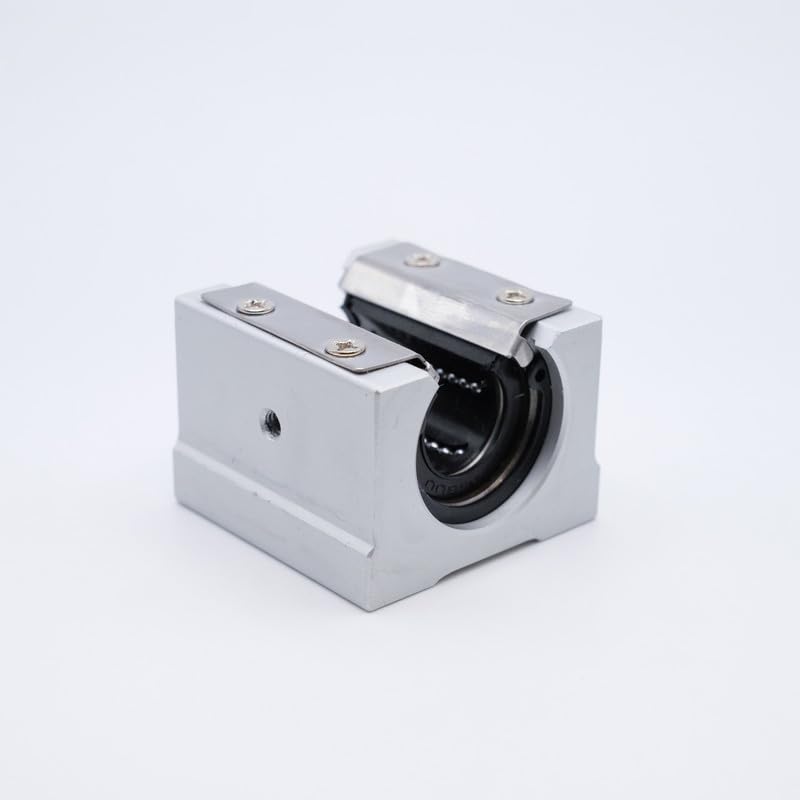

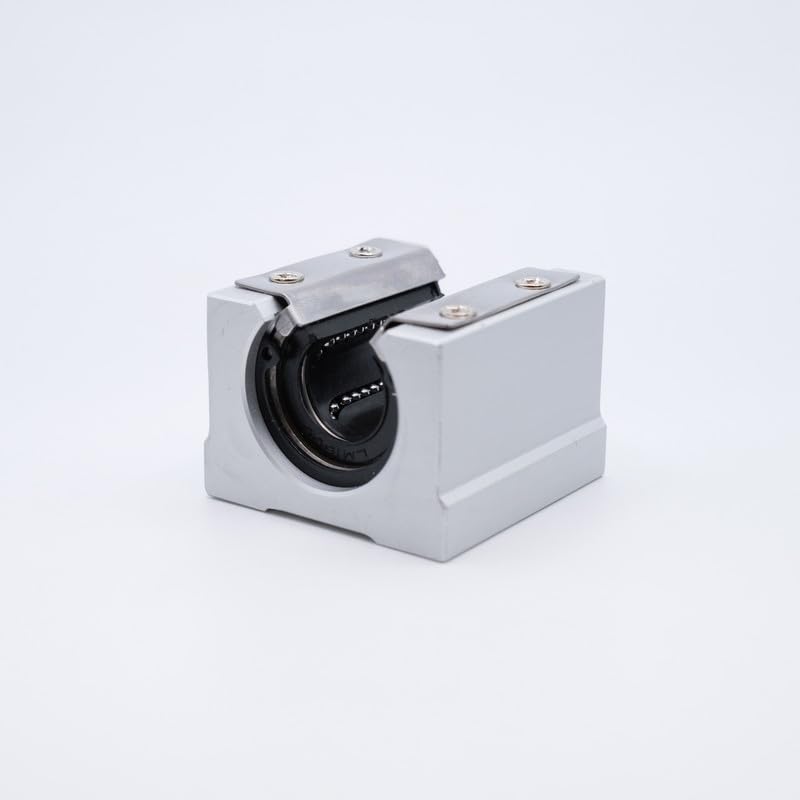

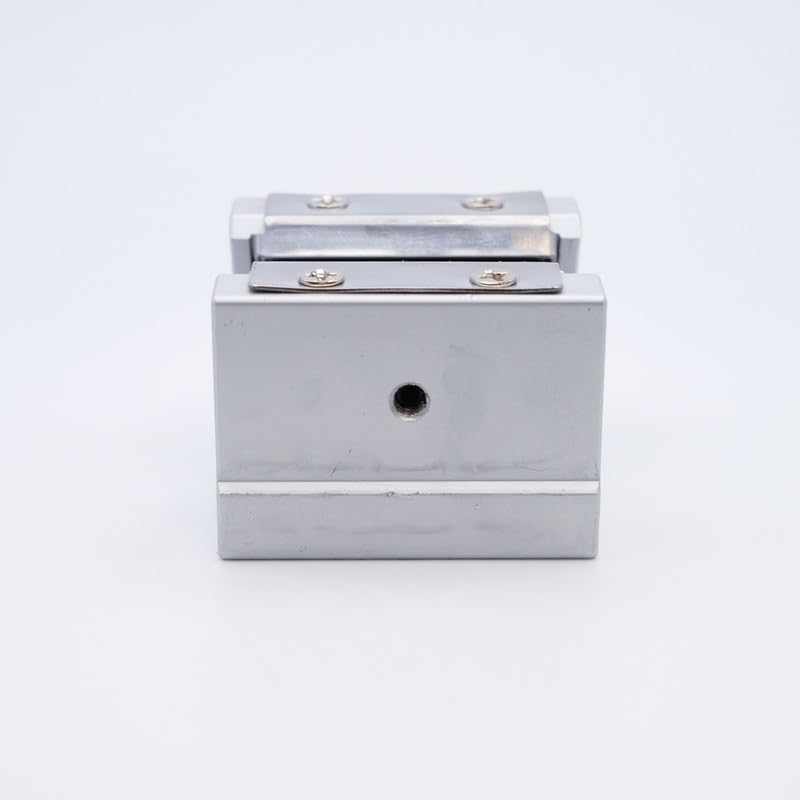

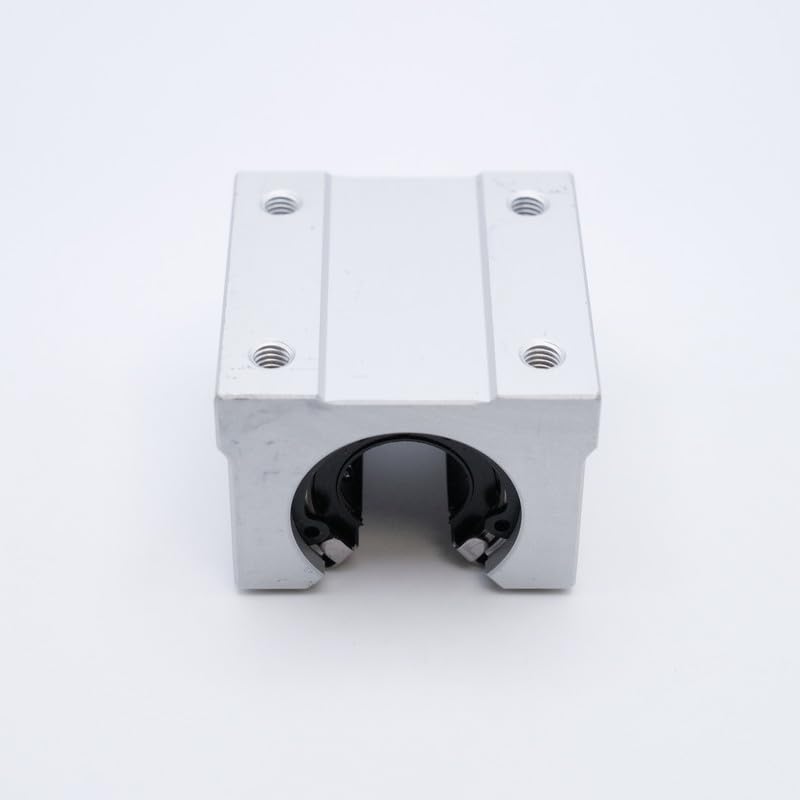

SME20UU Open Case Motion Linear Bearing 20mm Shaft SBR20UU

SME20UU Bearing is a Precision Open Case Pillow Block Ball Bushing Unit with Rubber Seals on both sides and a Polyamide Retainer. This is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.

• This SME20UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
• SME20UU Ball Bearing can be replaced with the various interchangeble numbers SBR20UU, SME20-UU, SBR20-UU.
• SME20UU have inner diameter 20mm, length 50mm, height 39mm,and width 48mm.
• Made with Housing Material Aluminum Alloy and lubricated Light Oil this bearing is ready for immediate use upon delivery, ensuring convenience and efficiency.
